APPLICATION

 균일한 분포를 가지는 구형의 기능성 고분자 입자를 제조합니다

Lighting Plate

Advanced Specialty Polymer

Functions

  • LED조명의 커버인 PC, PS, PMMA등의 레진에 확산제로 사용되며, LED 광원의 빛을 전방으로 고르게 확산시켜 주는 역할을 합니다.
  • 무기계 안료에 비해 광손실없이 뛰어난 확산과 투과 효과를 보여주며, 레진과의 상용성도 우수합니다.
View Catalogue >

Applications

  • Light diffusing agent for diffusing plate of LCD and lighting cover of LED

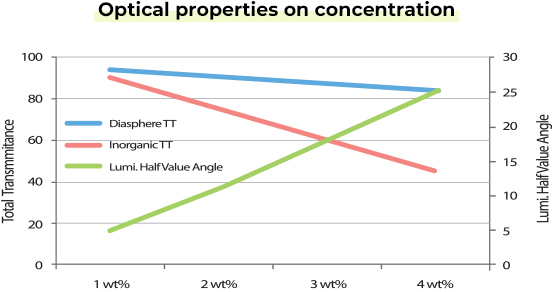

  • Optical properties on concentration

Optical properties of PC plate with MH-10FD and TiO2

Sample Optical Properties
  Haze TT DF PT
MH-10FD 0.5% 64.26 87.95 56.52 31.43
MH-10FD 1.0% 85.75 85.59 73.39 12.20
TiO2 0.02% 18.50 91.40 15.60 75.80
TiO2 0.5% 84.20 60.60 51.10 9.50
  • TT : Total Transmittance(PT+DF)
  • DF : Diffusion, PT : Parallel Transmittance
  • Haze = DF/TT×100
  • 2 mm Sheet

Optical Properties of Diffusing Plate with KS-200C in PC Matrix

KS-200C, PC Matrix

0.5% Hz TT DF PT
1.0T 98.77 74.82 73.90 0.92
1.5T 99.48 65.21 64.87 0.34
2.0T 99.59 58.93 58.69 0.24
2.5T 99.65 53.57 53.38 0.19
3.0T 99.68 49.59 49.43 0.16
1.0% Hz TT DF PT
1.0T 99.63 63.65 63.41 0.24
1.5T 99.70 56.72 56.55 0.17
2.0T 99.73 52.09 51.95 0.14
2.5T 99.73 48.37 48.24 0.13
3.0T 99.71 45.33 45.20 0.13
1.5% Hz TT DF PT
1.0T 99.71 57.79 57.62 0.17
1.5T 99.73 52.68 52.54 0.14
2.0T 99.73 48.67 48.54 0.13
2.5T 99.73 44.99 44.87 0.12
3.0T 99.71 41.72 41.60 0.12
2.0% Hz TT DF PT
1.0T 99.73 54.76 54.61 0.15
1.5T 99.74 49.32 49.19 0.13
2.0T 99.73 44.92 44.80 0.12
2.5T 99.75 40.25 40.15 0.10
3.0T 99.73 37.34 37.24 0.10
  • Measure optical properties using NDH5000 ISO mode

Optical Properties of Diffusing Plate with MH-5FHD in PC Matrix

MH-5FHD, PC Matrix

0.5% Hz TT DF PT
1.0T 95.50 87.02 83.10 0.92
1.5T 97.56 84.68 82.61 2.07
2.0T 98.76 78.74 77.76 0.98
2.5T 99.15 73.78 73.15 0.63
3.0T 98.97 76.63 75.84 0.79
1.0% Hz TT DF PT
1.0T 97.20 87.94 85.48 2.46
1.5T 98.60 83.82 82.65 0.17
2.0T 99.08 78.92 78.19 0.73
2.5T 99.31 73.54 73.03 0.51
3.0T 99.41 68.24 67.84 0.40
1.5% Hz TT DF PT
1.0T 98.72 84.13 83.05 1.08
1.5T 99.29 76.19 75.65 0.54
2.0T 99.45 69.59 69.21 0.38
2.5T 99.56 63.49 63.21 0.28
3.0T 99.60 58.05 57.82 0.23
1.1% Hz TT DF PT
1.0T 99.27 78.23 77.66 0.57
1.5T 99.54 68.88 68.56 0.32
2.0T 99.61 62.10 61.86 0.24
2.5T 99.66 55.48 55.29 0.19
3.0T 99.67 51.79 51.62 0.17
  • Measure optical properties using NDH5000 ISO mode

Optical Properties of Diffusing Plate with the mixture of KS-200C and MH-5FHD in PC Matrix

KS200C 0.5%+5FHD 0.25%

0.5% Hz TT DF PT
1.0T 98.45 77.96 76.75 1.21
1.5T 99.28 69.89 69.39 0.50
2.0T 99.52 62.71 62.41 0.30
2.5T 99.60 57.31 57.08 0.23
3.0T 99.64 52.97 52.78 0.19

KS200C 0.5%+5FHD 0.5%

0.5% Hz TT DF PT
1.0T 98.76 77.44 76.48 0.96
1.5T 99.41 68.25 67.85 0.40
2.0T 99.56 61.46 61.19 0.27
2.5T 99.64 56.12 55.92 0.20
3.0T 99.67 51.57 51.40 0.17

KS200C 0.5%+5FHD 0.75%

0.5% Hz TT DF PT
1.0T 99.01 76.38 75.62 0.76
1.5T 99.45 67.56 67.19 0.37
2.0T 99.59 60.56 60.31 0.25
2.5T 99.66 55.27 55.08 0.19
3.0T 99.67 50.95 50.78 0.17

KS200C 1.0%+5FHD 0.25%

0.5% Hz TT DF PT
1.0T 99.53 68.07 67.75 0.32
1.5T 99.66 59.64 59.44 0.20
2.0T 99.70 54.13 53.97 0.16
2.5T 99.72 50.31 50.17 0.14
3.0T 99.72 46.93 46.80 0.13

KS200C 1.0%+5FHD 0.5%

0.5% Hz TT DF PT
1.0T 99.54 67.74 67.43 0.31
1.5T 99.66 59.20 59.00 0.20
2.0T 99.72 53.69 53.54 0.15
2.5T 99.72 49.85 49.71 0.14
3.0T 99.72 46.55 46.42 0.13

KS200C 1.0%+5FHD 0.75%

0.5% Hz TT DF PT
1.0T 99.61 66.11 65.85 0.26
1.5T 99.69 57.89 57.71 0.18
2.0T 99.70 53.07 52.91 0.16
2.5T 99.72 49.29 49.15 0.14
3.0T 99.72 45.81 45.68 0.13

KS200C 1.5%+5FHD 0.25%

0.5% Hz TT DF PT
1.0T 99.67 61.39 61.19 0.20
1.5T 99.73 54.84 54.69 0.15
2.0T 99.72 50.88 50.74 0.14
2.5T 99.75 47.20 47.08 0.12
3.0T 99.73 44.15 44.03 0.12

KS200C 1.5%+5FHD 0.5%

0.5% Hz TT DF PT
1.0T 99.70 60.69 60.51 0.18
1.5T 99.72 54.44 54.29 0.15
2.0T 99.74 50.50 50.37 0.13
2.5T 99.74 46.80 46.68 0.12
3.0T 99.73 43.74 43.62 0.12
  • Measure optical properties using NDH5000 ISO mode

Optical Properties of Diffusing Plate with KS-200C and MH-5FHD in PS Matrix

KS-200

0.5% Hz TT DF PT
1.0T 97.66 80.93 79.04 1.89
1.5T 99.17 71.95 71.35 0.60
2.0T 99.45 66.00 65.64 0.36
2.5T 99.56 59.34 59.08 0.26
3.0T 99.64 56.01 55.81 0.20
1.0% Hz TT DF PT
1.0T 99.41 72.47 72.04 0.43
1.5T 99.64 63.40 63.17 0.23
2.0T 99.71 57.77 57.60 0.17
2.5T 99.72 53.02 52.87 0.15
3.0T 99.74 49.93 49.80 0.13
1.5% Hz TT DF PT
1.0T 99.64 66.39 66.15 0.24
1.5T 99.72 69.67 59.50 0.17
2.0T 99.75 55.05 54.91 0.14
2.5T 99.75 51.44 51.31 0.13
3.0T 99.73 48.72 48.59 0.13
2.0% Hz TT DF PT
1.0T 99.71 61.56 61.38 0.18
1.5T 99.75 56.64 56.50 0.14
2.0T 99.74 52.87 52.73 0.14
2.5T 99.74 49.68 49.55 0.13
3.0T 99.74 46.79 46.67 0.12

MH-5FHD

0.5% Hz TT DF PT
1.0T 90.18 89.75 80.94 8.81
1.5T 95.29 87.92 83.78 4.14
2.0T 97.32 85.35 83.06 2.29
2.5T 98.22 82.39 80.92 1.47
3.0T 98.97 75.89 75.11 0.78
1.0% Hz TT DF PT
1.0T 96.97 88.53 85.85 2.68
1.5T 98.48 84.27 82.99 1.28
2.0T 99.03 79.65 78.88 0.77
2.5T 99.28 74.54 74.00 0.54
3.0T 99.43 68.87 68.48 0.39
1.5% Hz TT DF PT
1.0T 98.36 86.04 84.63 1.41
1.5T 99.13 79.30 78.61 0.69
2.0T 99.37 73.30 72.84 0.46
2.5T 99.49 66.91 66.57 0.34
3.0T 99.57 60.94 60.68 0.26
2.0% Hz TT DF PT
1.0T 98.93 82.97 82.08 0.89
1.5T 99.38 74.27 73.81 0.46
2.0T 99.54 67.30 66.99 0.31
2.5T 99.61 61.40 61.16 0.24
3.0T 99.63 56.44 56.23 0.21

KS-200+MH-5FHD 50/50 Mixture

0.5% Hz TT DF PT
1.0T 94.95 86.69 82.31 4.38
1.5T 97.95 81.28 79.61 1.67
2.0T 98.84 76.52 75.63 0.89
2.5T 99.23 71.16 70.61 0.55
3.0T 99.40 66.42 66.02 0.40
1.0% Hz TT DF PT
1.0T 98.93 78.50 77.66 0.84
1.5T 99.44 70.03 69.64 0.39
2.0T 99.62 62.62 62.38 0.24
2.5T 99.65 57.38 57.18 0.20
3.0T 99.68 53.11 52.94 0.17
1.5% Hz TT DF PT
1.0T 99.53 70.40 70.07 0.33
1.5T 99.67 62.70 62.49 0.21
2.0T 99.72 56.96 56.80 0.16
2.5T 99.74 53.08 52.94 0.14
3.0T 99.74 49.36 49.23 0.13
2.0% Hz TT DF PT
1.0T 99.63 67.16 66.91 0.25
1.5T 99.72 59.64 59.47 0.17
2.0T 99.73 54.79 54.64 0.15
2.5T 99.75 51.42 51.29 0.13
3.0T 99.73 48.81 48.68 0.13
  • Measure optical properties using NDH5000 ISO mode

Optical Properties of Diffusing Plate with KS-200 in PMMA Matrix

KS-200C, PMMA Matrix

0.5% Hz TT DF PT
1.0T 92.81 93.15 86.45 6.70
1.5T 96.42 92.49 89.18 3.81
2.0T 97.62 91.34 89.17 2.17
2.5T 98.18 89.93 88.29 1.64
3.0T 98.69 87.08 85.94 1.14
1.0% Hz TT DF PT
1.0T 97.91 91.39 89.48 1.91
1.5T 98.76 87.77 86.68 1.09
2.0T 99.18 82.43 81.75 0.68
2.5T 99.31 78.17 77.63 0.54
3.0T 99.44 73.24 72.83 0.41
1.5% Hz TT DF PT
1.0T 98.77 88.44 87.35 1.09
1.5T 99.25 81.84 81.23 0.61
2.0T 99.45 74.84 74.43 0.41
2.5T 99.54 69.45 69.13 0.32
3.0T 99.59 63.52 63.26 0.26
2.0% Hz TT DF PT
1.0T 99.15 85.00 84.28 0.72
1.5T 99.49 74.51 74.13 0.38
2.0T 99.59 68.32 68.04 0.28
2.5T 99.63 64.01 63.44 0.24
3.0T 99.65 59.19 58.98 0.21
  • Measure optical properties using NDH5000 ISO mode
